Generic 2 Ton Low Profile Transmission Jack Heavy Duty Instruction Manual

1. နိဒါန်း

This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your Generic 2 Ton Low Profile Transmission Jack Heavy Duty. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and prevent injury or damage.

2. ဘေးကင်းရေးအချက်အလက်

သတိပေးချက်- ဤဘေးကင်းရေး ညွှန်ကြားချက်များကို လိုက်နာရန် ပျက်ကွက်ပါက ပြင်းထန်သော ဒဏ်ရာ သို့မဟုတ် သေဆုံးနိုင်သည်။

• လုံခြုံရေးမျက်မှန်နှင့် လက်အိတ်များအပါအဝင် သင့်လျော်သော ကိုယ်ရေးကိုယ်တာအကာအကွယ်ပစ္စည်းများကို အမြဲဝတ်ဆင်ပါ။
• Ensure the jack is placed on a hard, level, and stable surface capable of supporting the load.
• 2 တန် (ပေါင် 4000) ၏ အဆင့်သတ်မှတ်ထားသော စွမ်းရည်ထက် ဘယ်တော့မှ မကျော်လွန်ပါ။
• Do not use the jack for purposes other than lifting and positioning transmissions or similar components.
• Keep hands and feet clear of moving parts and the load during operation.
• Ensure the vehicle is properly supported on jack stands before working underneath it.
• Always secure the transmission or component to the saddle using chains or appropriate fasteners before lifting or moving.
• Inspect the jack for damage or wear before each use. Do not use if damaged.
• ကလေးများနှင့် ခွင့်ပြုချက်မရှိသူများကို အလုပ်ဧရိယာနှင့် ဝေးဝေးတွင်ထားပါ။

3. အစိတ်အပိုင်းများကျော်view

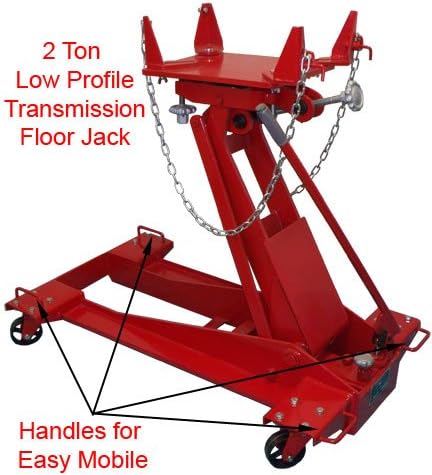

Familiarize yourself with the main components of your transmission jack:

• ကုန်းနှီး- Adjustable platform for supporting the transmission.
• သံကြိုးများ- Used to secure the transmission to the saddle.
• ဟိုက်ဒရောလစ်ပန့် Mechanism for lifting the saddle.
• ဖြန့်ချိရေး Valve- Controls the lowering of the saddle.

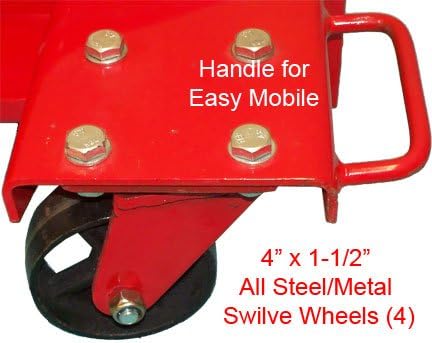

• Casters- Swivel wheels for easy maneuverability.
• လက်ကိုင်များ- For positioning and moving the jack.

4. စနစ်ထည့်သွင်းပါ။

1. ထုပ်ပိုးခြင်း- ထုပ်ပိုးမှုမှ အစိတ်အပိုင်းအားလုံးကို ဂရုတစိုက်ဖယ်ရှားပါ။ သင်္ဘောပျက်စီးမှု ရှိမရှိ စစ်ဆေးပါ။
2. စည်းဝေးပွဲ- The jack typically comes pre-assembled. Ensure all bolts and fasteners are tight before first use.
3. Bleeding the Hydraulic System (if necessary): If the jack does not lift smoothly or reaches full height, the hydraulic system may need bleeding. Refer to Figure 3.3 for the air vent plug and release valve.
   • Open the release valve by turning it counter-clockwise.
   • Remove the air vent plug.
   • Pump the handle several times to expel any trapped air.
   • Close the release valve and replace the air vent plug. Test the jack's operation.

5. လုပ်ငန်းဆောင်ရွက်မှုညွှန်ကြားချက်များ

5.1 အသုံးပြုရန် ပြင်ဆင်ခြင်း။

• Ensure the vehicle is securely supported on jack stands and the wheels are chocked.
• အလုပ်ခွင်မှာ အတားအဆီးတွေ ကင်းရှင်းအောင်ထားပါ။
• Position the transmission jack directly under the component to be lifted.

5.2 Lifting a Component

1. Close the release valve by turning it clockwise until it is firm. Do not overtighten.

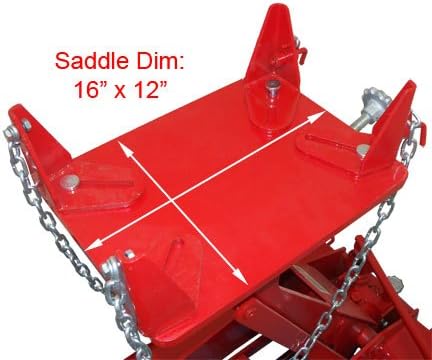

2. Position the saddle directly under the transmission or component. The saddle dimensions are approximately 16 inches by 12 inches.



3. Pump the handle to raise the saddle. The lift range is from 9 inches (low) to 35 inches (high).

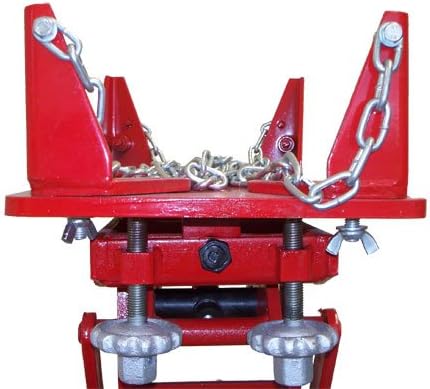

4. Once the component is resting on the saddle, use the provided chains to securely fasten it. The saddle also features adjustable corner brackets for better stability.



5. The saddle can tilt 10 degrees forward/backward and ±10 degrees side-to-side for precise positioning. Adjust as needed.

5.3 Lowering a Component

1. Ensure the area below the component is clear.
2. Slowly turn the release valve counter-clockwise to lower the saddle. Control the descent speed by adjusting how much the valve is opened.
3. Once the component is fully lowered and supported by other means (e.g., engine hoist, floor), unfasten the chains and remove the jack.

6. ပြုပြင်ထိန်းသိမ်းမှု

• ပုံမှန်စစ်ဆေးခြင်း- Before each use, inspect the jack for any signs of damage, cracks, leaks, or loose parts. Do not use if any issues are found.
• သန့်ရှင်းရေး- Keep the jack clean and free of dirt, grease, and debris.
• ချောဆီ- Periodically lubricate all moving parts, including pivot points and caster wheels, with a light machine oil.
• ဟိုက်ဒရောလစ်အရည် Check the hydraulic fluid level periodically. If low, refill with a high-quality hydraulic jack oil. Do not use brake fluid or other non-approved fluids.

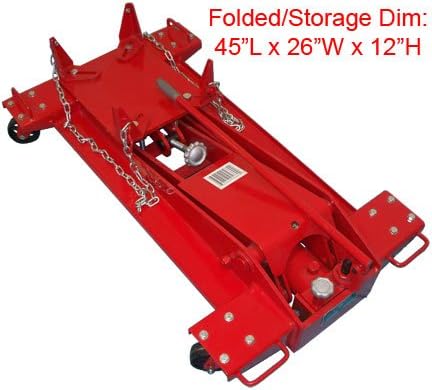

• သိုလှောင်မှု- Store the jack in a clean, dry place, preferably in its lowest position to protect the hydraulic cylinder. The folded/storage dimensions are approximately 45"L x 26"W x 12"H.

၃

• Jack does not lift:
  • Check if the release valve is fully closed.
  • Check hydraulic fluid level and add if necessary.
  • Bleed the hydraulic system to remove air (refer to Section 4).
• Jack lifts slowly or erratically:
  • ဟိုက်ဒရောလစ်စနစ်မှသွေးထွက်။
  • Check for low hydraulic fluid.
• Jack leaks hydraulic fluid:
  • Inspect for damaged seals or fittings. Contact customer support for repair or replacement.
• Jack lowers under load:
  • Ensure the release valve is fully closed.
  • သတ်မှတ်ထားသောစွမ်းရည်ထက်မပိုပါနှင့်။
  • If the issue persists, the internal seals may be faulty. Contact customer support.

8. သတ်မှတ်ချက်များ

9. အာမခံနှင့် ပံ့ပိုးမှု

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
